What solar technology would be the easiest and the least expensive to install?
In considering the options:
Passive solar would likely be the easiest and least expensive option. The methods involved in passive solar are described well in References 1 to 4. The Solar Barn in the Reference 5 example provides details on installing a passive solar system with typical costs. Obviously upgrading a home would cost more. One could possibly incorporate a solar room (or greenhouse) as a simple add-on before opening up the house to the solar room.
By comparison, Reference 6 cites the typical cost of installing a solar water heater at about $4000 to $8000. Reference 7 does provide a lower estimate. A neighbor has installed a solar water heater system and during initial operation of the system had a number of problems properly controlling pressure in the system.
The Department of Energy provides webpages that allow you to figure the gain due to using solar (Reference 8). Reference 9 is a help page for using this not-necessarily intuitive tool. PVC (Reference 10) and Concentrating Solar (Reference 11) maps are also provided.
1. Five Elements of Passive Solar Home Design, US DOE Energy Efficiency & Renewable Energy, http://www.energysavers.gov/your_home/designing_remodeling/index.cfm/mytopic=10270
2. Passive Solar Design, New Mexico Solar Energy Association, http://www.nmsea.org/Passive_Solar/Passive_Solar_Design.htm
3. Passive Solar Design for the Home, US DOE Energy Efficiency & Renewable Energy, DOE/GO-102001-1105, FS121, February 2001, http://www.nrel.gov/docs/fy01osti/27954.pdf
4. Solar Energy Basics, National Renewable Energy Laboratory, http://www.nrel.gov/learning/re_solar.html
5. Build A Solar Space Heater for $350, Homepower Magazine, http:www.homepower.com and http://www.builditsolar.com/Projects/SpaceHeating/SolarBarn.pdf
6. Solar Water Heating FAQs, AMECO, http://www.amecosolar.com/SOLARWATERFAQ.html
7. Solar FAQs - Solar Heating - ALL, DOE, EERE, http://apps1.eere.energy.gov/solar/cfm/faqs/third_level.cfm/name=Solar%20Heating/cat=ALL
8. US Solar Atlas, DOE, NREL, http://mapserve2.nrel.gov/website/L48NEWPVWatts/viewer.htm
9. United States Solar Atlas Internet Map Server Application Guide, US DOE, NREL, http://www.nrel.gov/gis/docs/help.doc
10. Photovoltaics Solar Resource of the United States
11. Concentrating Solar Resource of the United States
What are some of the challenges of generating electricity with solar technology, especially on a large scale?

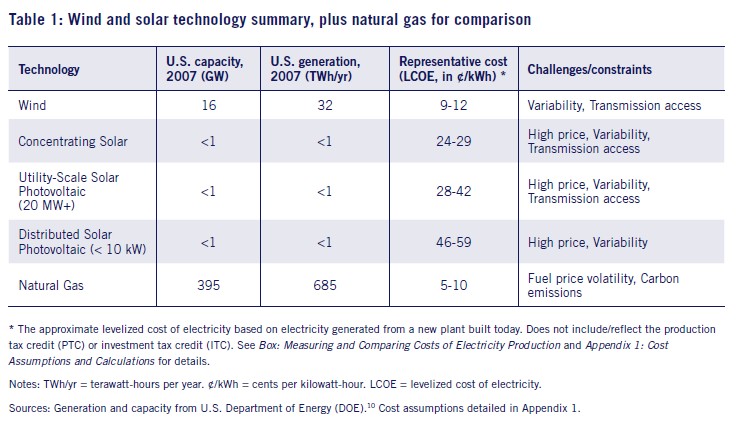

The major hindrance to widespread use of solar energy is the cost of the photovoltaic cells or concentrating solar plants. Table 1 from Reference 12 provides a cost comparison, as well as highlighting other challenges, namely variability of the resource and transmission access.
References 13 and 14 are additional helpful references found during the research on the topics.
The major hindrance to widespread use of solar energy is the cost of the photovoltaic cells or concentrating solar plants. Table 1 from Reference 12 (see above) provides a cost comparison, as well as highlighting other challenges, namely variability of the resource and transmission access.
Storage capability and space needed are also valid issues. Storage methods suited to the diurnal cycle of solar energy need to be improved. The Pacific Northwest, while having about 1/3 of the solar intensity impacting the earth compared to Arizona (Reference 8), does have several large unoccupied land locations available, namely the Hanford (References 15, 16) and Idaho (References 17, 18) Department of Energy sites. The question is - would the federal government release the land for such a purpose? Likely additional spots would be available elsewhere in eastern Washington and Oregon and southern Idaho where large expanses of flat land, qualifying as poor farm land or range, exist.
Another item to consider is the impact on wildlife habitat (References 19-22). The Arizona Fish and Game department article also identified large impervious surface areas and use of large amounts of water (Reference 19) as potential impacts to consider. The California desert habitat concern noted in Reference 22 is likely to be the first of many similar impacts that will be brought up when solar plants come to fruition.
Another challenge is the need to improve the efficiency of the solar cells. Efficiency is still low at less than 10% (References 23-26).
Every area of the United States has a unique energy generation profile that is optimum for the area. For the Pacific Northwest, hydro, wind, and wave generation methods appear to be best suited for the area. However, solar still has a place. More area would needed to accommodate the less than optimum sunlight.
12. Wind and Solar ElEctricity: challEngES and opportunities, Prepared for the Pew Center on Global Climate Change by Paul Komor, University of Colorado at Boulder, June 2009, http://www.pewclimate.org/docUploads/wind-solar-electricity-report.pdf
13. Solar Water Heaters, US DOE Energy Efficiency & Renewable Energy, http://www.energysavers.gov/your_home/water_heating/index.cfm/mytopic=12850
14. Solar DIY Space Heating Projects, Build It Solar, Solar DIY Space Heating Projects, http://www.builditsolar.com/Projects/SpaceHeating/Space_Heating.htm
15. Hanford, Department of Energy, http://www.hanford.gov/
16. Hanford Site, Wikipedia, http://en.wikipedia.org/wiki/Hanford_Site
17. Idaho National Laboratory, Department of Energy, https://inlportal.inl.gov/portal/server.pt/community/home/255
18. Driving Directions - Idaho National Lab, Idaho National Laboratory, https://inlportal.inl.gov/portal/server.pt/community/driving_directions/481
19. New wind and solar power guidelines aim to help Arizona's wildlife, Arizona Fish & Wildlife Department, http://azgfd.net/artman/publish/NewsMedia/New-wind-and-solar-power-guidelines-aim-to-help-Arizona-s-wildlife.shtml
20. Comments on Panoche Valley Solar Farm, fresnoaudobonsociety Santa Cruz Bird Club, http://www.san-benito.ca.us/departments/planning/documents/Solargen/scoping/cmts/040210%2520Conservation%2520Organizations.pdf
21. Environmental Impacts of Renewable Energy Technologies, Union of Concerned Scientists, http://www.ucsusa.org/clean_energy/technology_and_impacts/impacts/environmental-impacts-of.html
22. Allow solar power projects to proceed in government owned sagebrush and creosote desert, America's Great Outdoors Jam - US Department of Agriculture, http://ideas.usda.gov/ago/ideas.nsf/0/46B47F8B18399CA8862577C50056B8C0?OpenDocument
23. Highly Efficient Solar Cells Could Results from Quantum Dot Research, University of Texas at Austin, http://www.utexas.edu/news/2010/06/17/quantum_dot_research/
24. An unexpected discovery could yield a full spectrum solar cell, Research News, Lawrence Berkeley National Laboratory, http://www.lbl.gov/Science-Articles/Archive/MSD-full-spectrum-solar-cell.html
25. Record Efficency for Plastic Solar Cells, Technology Review, July 13, 2007, http://www.technologyreview.com/Energy/19044/
26. New solar cell efficiency record set, Scientific American, News Blog, David Biello, August 27, 2009, http://www.scientificamerican.com/blog/post.cfm?id=new-solar-cell-efficiency-record-se-2009-08-27
1. The Guide to Home Solar Panels, Solar Tribune, http://solartribune.com/your-home/
2. The Guide to Solar Thermal Energy, Solar Tribune, http://solartribune.com/solar-thermal-power/
